The Most Important Components of LCD Monitors: Understanding the Inner Workings

Introduction:

LCD (Liquid Crystal Display) monitors have become the standard for computer displays due to their sleek design, vibrant colors, and energy efficiency. Behind their slim exterior lies a complex system of components that work together to produce the visuals we see on the screen. In this article, we will explore the most important components of LCD monitors and their roles in creating a high-quality display.

LCD Panel:

The LCD panel is the heart of the monitor and is responsible for producing the actual images. It consists of millions of tiny liquid crystals sandwiched between two layers of glass. These crystals align and manipulate light to create the colors and shapes we see on the screen. The quality of the LCD panel greatly impacts the monitor's overall performance, including color accuracy, contrast ratio, and viewing angles.

Backlight:

The backlight is positioned behind the LCD panel and provides the necessary illumination for the display. It typically consists of a series of cold cathode fluorescent lamps (CCFL) or, in more modern monitors, LED (Light Emitting Diode) lights. The backlight's brightness and uniformity play a crucial role in achieving a clear and evenly lit display. LED backlighting offers advantages such as improved energy efficiency, thinner form factor, and better color reproduction.

Inverter or LED Driver:

For monitors with CCFL backlights, an inverter is used to convert the direct current (DC) from the power supply into alternating current (AC) needed to power the fluorescent lamps. On the other hand, monitors with LED backlights require an LED driver to regulate the power supply and control the brightness of the LEDs. These components ensure stable and efficient operation of the backlighting system.

Display Controller:

The display controller, also known as the timing controller or TCON, acts as the "brain" of the LCD monitor. It receives digital signals from the computer or video source and converts them into signals that the LCD panel can understand. The display controller also manages various aspects of the display, including pixel refresh rates, color depth, and resolution. It plays a crucial role in delivering smooth and accurate visuals to the screen.

Video Interface:

The video interface is the connection between the LCD monitor and the computer or video source. Common video interfaces include VGA (Video Graphics Array), DVI (Digital Visual Interface), HDMI (High-Definition Multimedia Interface), and DisplayPort. These interfaces transmit the digital or analog signals from the source to the monitor, allowing for the proper display of images and videos.

Power Supply:

The power supply unit provides the necessary electrical power to all the components of the LCD monitor. It converts the incoming AC power into the DC power required by the monitor's internal circuitry. A stable and reliable power supply is essential for proper functionality and performance of the monitor.

Control Buttons and OSD:

LCD monitors are equipped with control buttons that allow users to adjust various settings, such as brightness, contrast, color temperature, and input selection. These buttons, along with the On-Screen Display (OSD), provide a user-friendly interface for customizing the monitor's settings according to individual preferences.

Conclusion:

LCD monitors are sophisticated devices comprising multiple components that work together to deliver impressive visuals. Understanding the importance of these components, such as the LCD panel, backlight, inverter/LED driver, display controller, video interface, power supply, and control buttons, can help users appreciate the complexity behind the monitor's performance. By having a grasp of these essential components, users can make informed decisions when purchasing, troubleshooting, or optimizing their LCD monitors.

Frame or Bezel:

The frame or bezel refers to the outer casing that surrounds the LCD panel. It serves both functional and aesthetic purposes. Functionally, it provides structural support to the panel and protects it from damage. Aesthetically, it contributes to the overall design and appearance of the monitor. The size and design of the frame or bezel can vary across different monitor models.

Anti-Glare or Matte Coating:

Many LCD monitors feature an anti-glare or matte coating on the screen surface. This coating helps reduce reflections and glare caused by ambient light, improving visibility and reducing eye strain. The anti-glare coating diffuses light and minimizes reflections without compromising image clarity. It is particularly beneficial in environments with bright lighting conditions.

Color Filters and Polarizers:

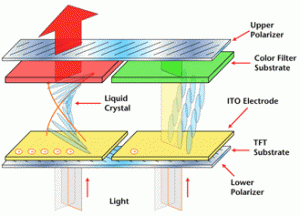

Color filters and polarizers are additional layers incorporated into the LCD panel. Color filters are responsible for producing the different colors on the screen by selectively filtering light passing through the liquid crystals. They work in conjunction with the backlight to create accurate and vibrant colors. Polarizers, on the other hand, help control the direction and polarization of light to enhance contrast and improve viewing angles.

In-Plane Switching (IPS) or Twisted Nematic (TN) Technology:

LCD panels can be based on different technologies, with In-Plane Switching (IPS) and Twisted Nematic (TN) being two common types. IPS technology offers wider viewing angles, better color reproduction, and superior image quality with more accurate color representation. TN technology, on the other hand, offers faster response times and is often used in monitors optimized for gaming or fast-paced multimedia applications.

Electronic Control Board:

The electronic control board, also known as the mainboard or logic board, is responsible for controlling and coordinating the operation of all the internal components of the LCD monitor. It receives signals from the display controller and other inputs, processes them, and sends instructions to the various components to produce the desired output on the screen. The electronic control board contains the necessary circuitry and microprocessors to execute these functions.

Power LED and Indicator Lights:

LCD monitors often feature a power LED or indicator lights that provide visual feedback about the monitor's status. The power LED typically illuminates when the monitor is turned on and may change color or blink to indicate different states, such as standby mode or power-saving mode. Additional indicator lights may be present to signify other functions, such as signal detection or the presence of audio output.

Conclusion:

LCD monitors consist of a range of important components that work together to deliver high-quality visuals and functionality. Understanding these components, including the frame/bezel, anti-glare coating, color filters, polarizers, display technology (IPS or TN), electronic control board, power LED, and indicator lights, provides a more comprehensive view of how LCD monitors operate and the factors that contribute to their performance. By considering these components when selecting a monitor, users can make informed choices based on their specific needs and preferences.
